How to upload a file using FTP

Introduction

The tsNet external allows you to transfer data over more than just the HTTP and HTTPS protocols.  It also supports transferring files via the FTP, FTPS and SFTP protocols.

This lesson shows how you can upload a file via the FTP protocol using a publicly available FTP server.  Note that the server used in this code automatically removes uploaded files from the server as soon as the transfer has completed for security reasons.

Lay out the Stack

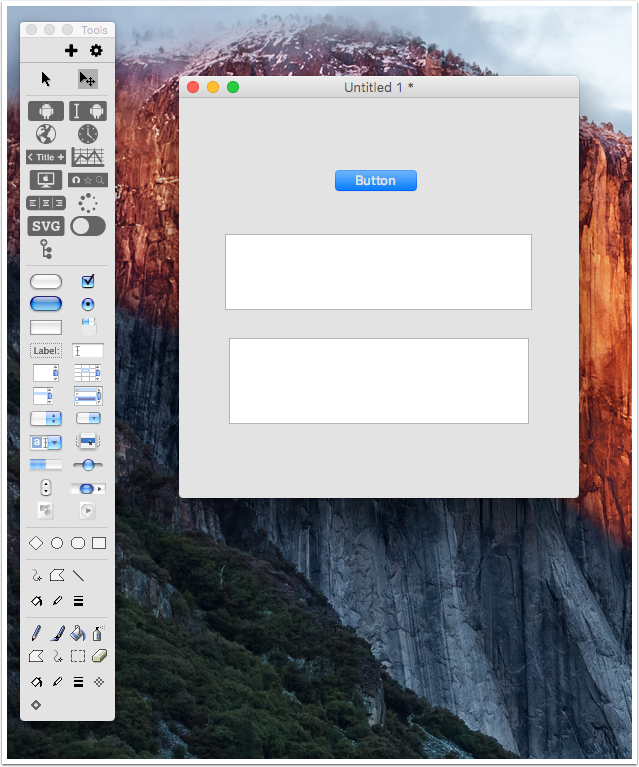

Create a new stack then drag a button and two fields onto it.

Set the name of the fields to "Output" and "Server Response".

Save this stack.

Create the Script

Edit the script of the button that you placed on the stack by right clicking on the button and selecting "edit script".

Add the following code.

on mouseUp pMouseButton
   -- Store the FTP server details in some variables
   put "ftp://speedtest.tele2.net" into tFtpServer
   put "/upload" into tFtpDirectory

   -- The tSettings array can be used to provide additional configuration details, in this case
   -- the username and password to use when transferring the files via FTP
   put "anonymous" into tSettings["username"]
   put "test" into tSettings["password"]

   -- Prompt the user for a file to upload and only continue if they did not cancel
   answer file "Select a file to upload"
   if the result is not "Cancel" then
      -- Store the path to the file the user chose
      put it into tFileToUpload

      -- Get the file name of the file they selected (everything past the last slash)
      set the itemDel to slash
      put the last item of tFileToUpload into tFileName

      -- Since we are using tsNetUploadSync, we have to retrieve the contents of the file they chose and
      -- store it in a variable for uploading
      put URL("file:" & tFileToUpload) into tFileContents

      -- Let the user know that the transfer is starting
      put "Uploading file" && tFileName && "to" && tFtpServer & tFtpDirectory & cr into field "Output"

      -- Perform the upload
      put tsNetUploadSync(tFtpServer & tFtpDirectory & slash & tFileName, tHeaders, tFileContents, tRecvHeaders, tResult, tBytes, tSettings) into tOutput

      -- Output the response to the user
      put "Transfer complete with server response code" && tResult after field "Output"
      put tRecvHeaders into field "Server Response"
   end if
end mouseUp
Click to copy

Test

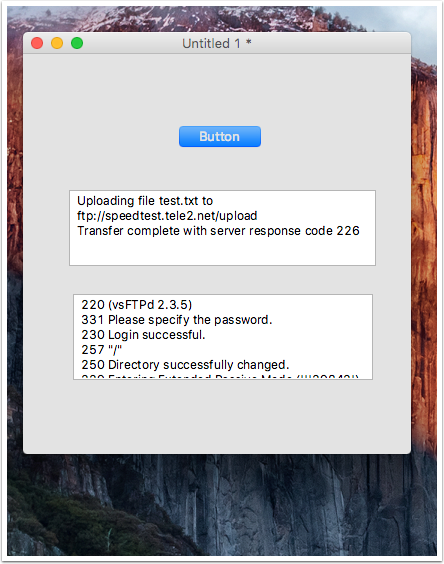

Switch to Run mode and click the button. The application will prompt the user for a file to upload.

After selecting a file, the application will perform the transfer.

More information

As can be seen in the example above, the tsNetUploadSync command returns various pieces of information that relate to the transfer.

In particular, the tResult variable used in the above example will contain the status code of the last FTP command that took place as part of the transfer.  Unlike transfers over the HTTP protocol, FTP transfers often involve several commands being issued by tsNet.  These commands happen transparently and perform tasks such as changing the current directory and authenticating to the FTP server.

By default, tsNet does not automatically close the FTP connection after transferring any data.  In these cases, the last command to be issued during a transfer is the upload/download request itself.  A successful server response code to this command is usually a 226 code (meaning "Transfer Complete") as seen above.

If tsNet has been set to close the connection (see the "no_reuse" option that can be passed to the tSettings array in the LiveCode dictionary for more information) then the last command to be issued will be the disconnect request.  This usually results in a server response code of 221 (meaning "Goodbye").

Note however that if the transfer is unsuccessful, the tResult variable will contain an error message that begins with "tsneterr:".

Another piece of information returned by the function is stored in the tRecvHeaders variable and can be useful in diagnosing the FTP server responses.  It provides a full log of all the server responses during the course of a transfer.

7 Comments

Carel

I've tried the lesson but just can't get it to work.
My server only allows TLS/SSL Explicit encryption so I've tried the code with adding:

put true into tSettings["use_ssl"]

I get the following error:

Transfer complete with server response code tsneterr: (35) schannel:
SNI or certificate check failed: SEC_E_WRONG_PRINCIPAL (0x80090322) -
The target principal name is incorrect.

Any idea what I'm doing wrong?

Charles Warwick

Hi Carel,

This error usually means that the server name you are connecting to does not match the server name that the SSL certificate on the server is issued to. For example, if you are connecting to a URL of ftp://ftp.example.com/path/to/file.txt then the server name is ftp.example.com

In many cases, servers will have multiple server names that can be used when connecting to them. However, when you connect via SSL, you must connect using the server name that is specified on the SSL certificate.

If this is just for testing purposes and security is not really an issue, you can also disable the SSL verification inside tsNet by issuing the following command:

tsNetVerifySSLPeer false

Regards,

Charles.

Robert

Maybe this comment has been made elsewhere, in which case my apologies:

Instead of

put URL("file:" & tFileToUpload) into tFileContents

you can use
open file tFileToUpload for binary read
read from file tFileToUpload until EOF
put it into tFileContents

and that will upload a "binary" file. (all files in the end are of course "binary" really, but Unix has infected us with the idea that there are text files and binary files.)

Trevix

I have the following script that works fine on OSX and iOS hardware, but not on iOS simulator and Android hardware (yes, internet is enabled in android standalone setup). On Android it returns “tsneterr: (15) Could not resolve to host”. On iOS simulator return nothing. Is there a reason?
on DOMirrorSP pLongImage --pLongImage is the long name of the card to take a snapshot
put the rect of pLongImage into tRect
--export card image to var
try
export snapshot from rect tRect of pLongImage to tImageContent as PNG
catch theError
answer theError
end try
TransferScreen tImageContent --tImageContent is the binary of the screenshot
end DOMirrorSP

command TransferScreen pFileContents
-- transfers a "png" file to the Pi to be shown on the screen
put "screen.png" into tFileName -- this file name is the one the Pi program will look for
-- perform the upload
--the PrefTF["MirrorSP"] global holds the preset info for the ftp. (es gPrefTF["MirrorSP"]["PIFtpServer"]="ftp://trevix.it", gPrefTF["MirrorSP"]["PiFtpDirectory"] = “/public_html”, etc
try
put tsNetUploadSync(gPrefTF["MirrorSP"]["PIFtpServer"] & gPrefTF["MirrorSP"]["PiFtpDirectory"] & slash & tFileName, tHeaders, pFileContents, tRecvHeaders, tResult, tBytes, gPrefTF["MirrorSP"]["settings"]) into tOutput
catch theError
answer theError
end try
if "tsneterr:" is in tResult then
answer tResult
end if
end TransferScreen

Elanor Buchanan

Hi Trevix

I see you have already found the bug in the Quality Control Centre.

https://quality.livecode.com/show_bug.cgi?id=22976

I have added a comment with more details on the steps needed to replace tsNet with the updated version but please let us know if it is still not working for you.

Elanor

simon

Hi Elanor, is there any way to spicify to "overwrite" the file being uploaded if another one with the same name already exists on the server? Many thanks for your customary help.

Regards

simon

I've done some testing and I found this is the default way the command operates, so please disregard my previous comment.
Thanks and regads
