How do I display a table in a field?

LiveCode's field features allow you to embed simple tables directly into your text fields and alter their appearance. This lesson applies to LiveCode 5.5 and later.

The sample stack

The sample stack

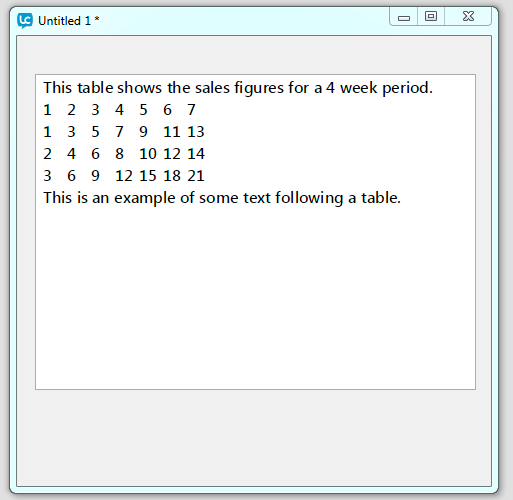

Create a new stack, add a field, name it "Display" and add some tab separated data to the field.

If you like you can also include some text before and after the data to be displayed in a table.

Creating the grid

Creating the grid

To create the grid set the hGrid and vGrid properties of the lines of the field which make up the table. Run the following code in the message box:

set the hGrid of line 2 to -2 of field "Display" to true

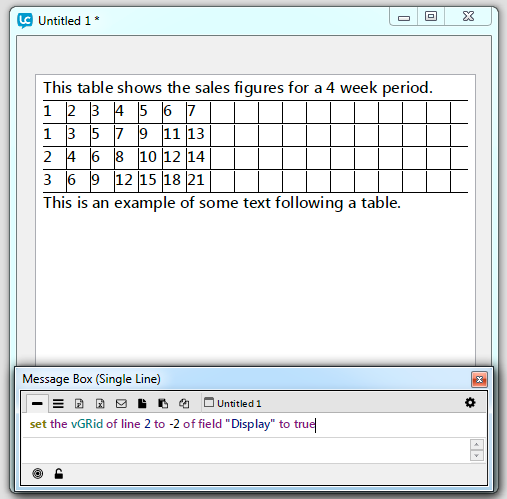

set the vGrid of line 2 to -2 of field "Display" to true

The hGrid property causes 1 pixel width grid lines to be placed before and after any line with it set to true. The vGrid property causes 1 pixel width grid lines to be placed between each tab position and forces text to clip to tab width in a cell-like fashion.

We are operating on lines "2 to -2". LiveCode counts both down from the top and up from the bottom of the lines in your field. So line 2 is the first line in the table, and because we have a line of text after the last line of the table the last line of the table is -2 from the bottom. We could also have used "line 2 to 5" but this would mean that if another line was added to the table, the code would break. Also, some of the later operations we are going to do on this table would have strange results.

Make the table fixed width

Make the table fixed width

Now to make the table 'fixed width' we make sure the tabWidths finishes with a zero-width tab.

This has two effects:

the vertical grid lines will stop at the zero-width tab

the left and right sides of the table determine the location of paragraph borders, filling and alignment.

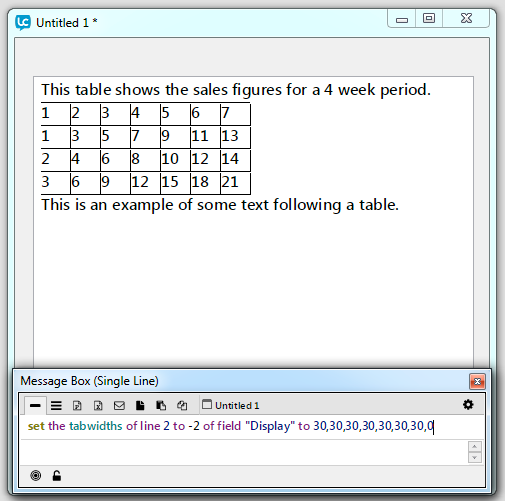

set the tabWidths of line 2 to -2 of field "Display" to 30,30,30,30,30,30,30,0

Adding spacing before and after the table

Adding spacing before and after the table

Now we want to add some spacing between the text paragraphs and the table.

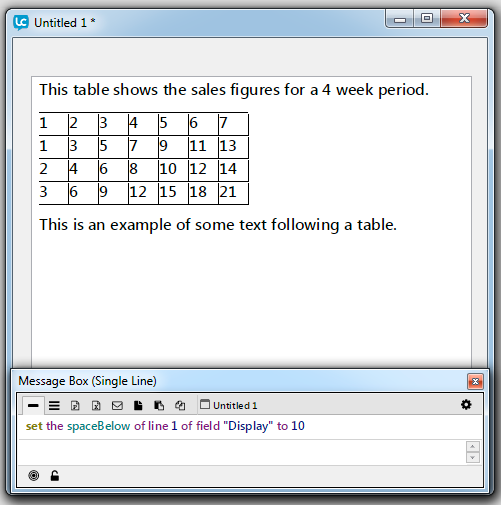

set the spaceBelow of line 1 of field "Display" to 10
set the spaceAbove of line -1 of field "Display" to 10

Adding a border to the table

Adding a border to the table

To add a border to the table as a whole we set the borderWidth of all the lines in the table. When in hGrid mode, borders of adjacent lines which have compatible properties are merged into a 1-pixel grid line.

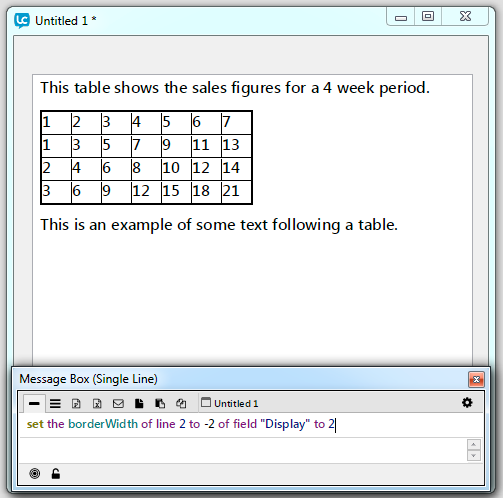

set the borderWidth of line 2 to -2 of field "Display" to 2

Adding indentation

Adding indentation

You can add an indent to the left or right of the table by setting the leftIndent or rightIndent property of the lines of the field that make up the table.

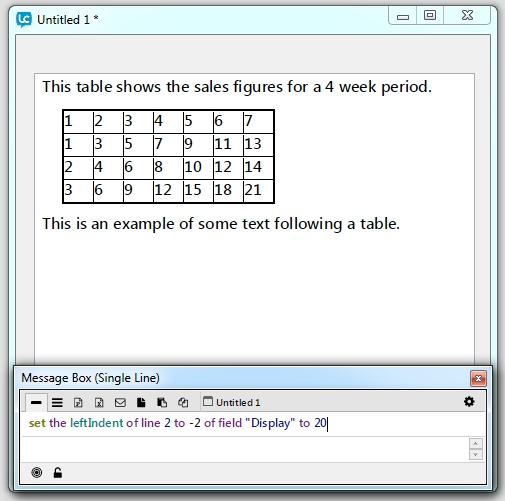

set the leftIndent of line 2 to -2 of field "Display" to 20

Adding padding

Adding padding

You can add padding to the cells of field by setting the padding property.

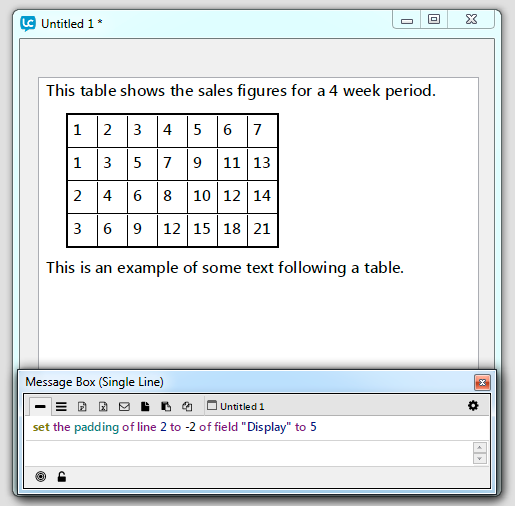

set the padding of line 2 to -2 of field "Display" to 5
