Connecting to a MySQL database

How to connect to a MySQL database via scripts only i.e. without using the Query Builder.

MySQLExample.livecode

Database setup

LiveCode has set up a sample database which these scripts will use, but to use them for your own database, you will need to know the address of the database, the port number (if different from the default), your user name and password.

Basics

There are 4 main operations that you need to be able to do:

1. Open a connection to the database.

2. Get data from the database - query the database.

3. Alter the database - add, edit or delete records.

4. Close the connection to the database.

When you open a connection to a database, you will be assigned a connection ID. You must use this connection ID in all the other operations to tell your scripts which database connection to use.

Connecting to the database

Connecting to the database

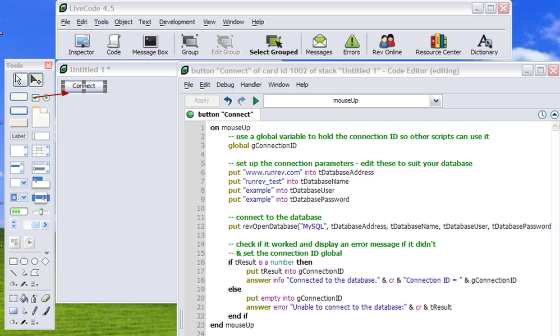

Create a new stack and drag over a new button from the Tools palette. use the Inspector to change the button's name to "Connect" and copy the script below into its script.

on mouseUp
	-- use a global variable to hold the connection ID so other scripts can use it
	global gConnectionID

	-- set up the connection parameters - edit these to suit your database
	put "livecode.com" into tDatabaseAddress
	put "runrev_test" into tDatabaseName
	put "runrev_example" into tDatabaseUser
	put "example" into tDatabasePassword

	-- connect to the database
	put revOpenDatabase("MySQL", tDatabaseAddress, tDatabaseName, tDatabaseUser, tDatabasePassword) into tResult

	-- check if it worked and display an error message if it didn't
	-- & set the connection ID global
	if tResult is a number then
		put tResult into gConnectionID
		answer info "Connected to the database." & cr & "Connection ID = " & gConnectionID
	else
		put empty into gConnectionID
		answer error "Unable to connect to the database:" & cr & tResult
	end if
end mouseUp

Save the script by clicking "Compile" in the Script Editor, then click the "Connect" button to test.

It should connect to the sample database on livecode.com and tell you when it has succeeded.

If it gives an error check the script, especially the four variables that hold the connection information.

Note: if you test the button with incorrect settings, it may take a long time to fail, so don't panic if it looks like everything is frozen.

This example is sample code. We recommend never putting usernames and passwords in scripts you distribute (they should be collected from the user!).

Getting data from the database

Getting data from the database

To get data from the database, construct a standard SQL query, then use the revDataFromQuery() function to retrieve the matching data.

Drag another button from the Tools palette, and use the Inspector to change it's name to "Query".

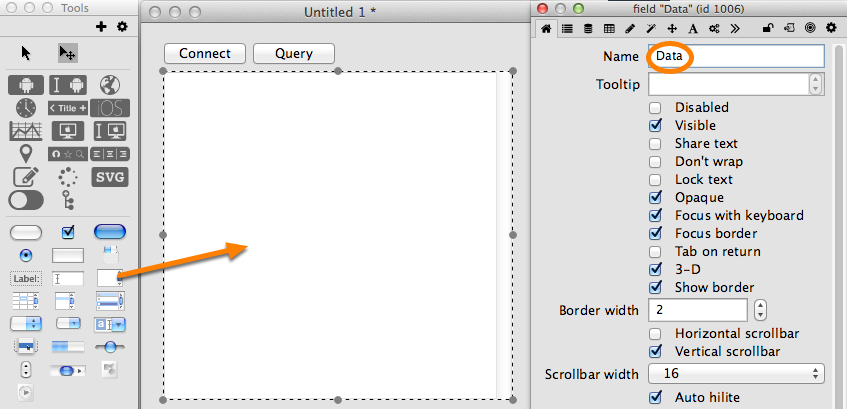

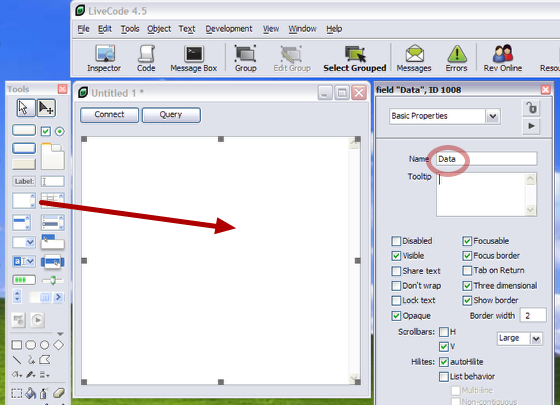

Now drag over a scrolling text field and call it "Data". The names of the buttons are not so important, but the script is going to refer to field "Data", so make sure it is named.

Copy the script below and use it to set the script of the "Query" button.

on mouseUp
	-- check the global connection ID to make sure we have a database connection
	global gConnectionID
	if gConnectionID is not a number then
		answer error "Please connect to the database first."
		exit to top
	end if

	-- construct the SQL (this selects all the data from the specified table)
	put "Table1" into tTableName	-- set this to the name of a table in your database
	put "SELECT * FROM " & tTableName into tSQL

	-- query the database
	put revDataFromQuery(tab, cr, gConnectionID, tSQL) into tData

	-- check the result and display the data or an error message
	if item 1 of tData = "revdberr" then
		answer error "There was a problem querying the database:" & cr & tData
	else
		put tData into field "Data"
	end if
end mouseUp

Compile the script and test the Query button. I have put a couple of sample entries into the database, so you should see some information appear in the "Data" field.

Adding a new record to the database

This uses a similar technique to the one used for querying the data: construct an SQL command to add the new data and then use a LiveCode command to send this SQL to the database and get a response. In this case, the LiveCode command is revExecuteSQL.

Make a new button as before, call it "Add Record" and copy in the script below.

on mouseUp
	-- check the global connection ID to make sure we have a database connection
	global gConnectionID
	if gConnectionID is not a number then
		answer error "Please connect to the database first."
		exit to top
	end if

	-- edit these variables to match your database & table
	-- this assumes a table called Table1 with 3 fields
	put "Table1" into tTableName
	put "firstName, lastName, birthDate" into tFields
	put "Mary" into tFirstName
	put "Smith" into tLastName
	put the short date into tBirthDate	-- this is nonsensical but gives some variation to the data

	-- construct the SQL - the :1, :2 & :3 placeholders in the SQL will be filled by variables in the revExecuteSQL line
	put "INSERT INTO " & tTableName & " (" & tFields & ") VALUES (:1, :2, :3)" into tSQL

	-- send the SQL to the database, filling in the placeholders with data from variables
	revExecuteSQL gConnectionID, tSQL, "tFirstName", "tLastName", "tBirthDate"

	-- check the result and display the data or an error message
	if the result is a number then
		answer info "New record added."
	else
		answer error "There was a problem adding the record to the database:" & cr & the result
	end if
end mouseUp

This uses a placeholder technique for inserting data into SQL command. When creating the SQL command, use :1, :2 etc to show where the variables are going to be.

Then in the revExecuteSQL command, add the names of the variables as extra parameters after the SQL command itself. These are then inserted in order i.e. in the example above, the contents of the variable tFirstName will be used in place of :1 and the contents of tBirthDate will be used wherever :3 appears.

Click this button to test. You will get a dialog reporting success or failure. Then click the "Query" button again and you should see a new record added to the list.

Editing or deleting an existing record

This will not go into this in detail, because it is almost exactly the same as adding a record.

To edit an record, the SQL has to be in the following form:

UPDATE Table1 SET birthDate='12/06/1970' WHERE firstName='Mary' AND lastName='Smith'

And for deleting:

DELETE FROM Table1 WHERE firstName='Mary' AND lastName='Smith'

Then use revExecuteSQL and check for errors as before.

Disconnecting

It is always a good idea to disconnect from the database when you have finished. All connections will close automatically when your application quits, but it is still good practice to do it yourself.

Make another button called "Disconnect" and set its script to the example below:

on mouseUp
	global gConnectionID

	-- if we have a connection, close it and clear the global connection ID
	if gConnectionID is a number then
		revCloseDatabase gConnectionID
		put empty into gConnectionID
	end if
end mouseUp

Summary

LiveCode does an excellent job of providing the hooks to get into a MySQL database without having to worry about the details.

However you do need to know the basics of SQL in order to retrieve and edit the data once the connection is made.

If you look in the LiveCode Resource Center, in the Database section there is a sample SQLite stack that you can download. Although this deals with SQLite instead of MySQL, the actual SQL syntax is much the same and it provides a good tutorial for learning the basics of SQL as well as an introduction to some more complex queries.

Using the scripts above as a starting point, you can edit the database settings so as to access other MySQL databases, either on your own computer, on another computer on your network or on a server elsewhere.
