How to manage and position objects when a stack is resized

When you are the only person using your stacks, their layout and size often does not matter much. But as soon as you distribute them, be it as full blown application, or just as quick fun thingy for a friend, you will need to manage object positions and sizes for any stack size the user chooses.

This is a very basic introduction to custom resizing, and of course only one way to go about things. Make sure to read the relevant dictionary entries and make up your own mind about how you want to your application to behave when the window is resized.

Attached Files

Create Layout

Create Layout

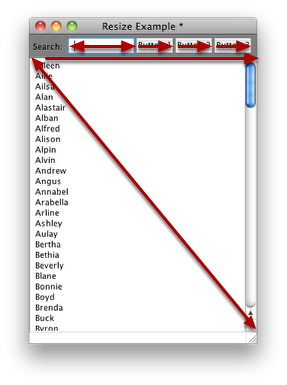

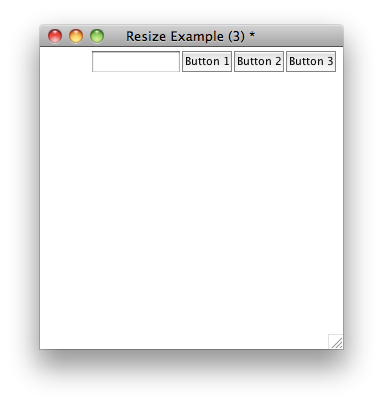

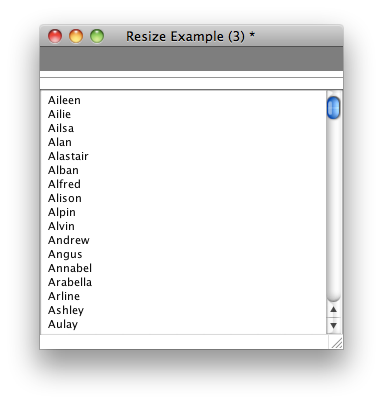

I have created a simple example layout. Even tho it only has few controls, It'll show you most basic resize Operations. For example, I'll want the search field to be resized in width, but not in height. The list field should be completely resized, while the buttons should only be moved. Finally, there's two graphics, a dark grey rectangle, and a light grey line that makes the border to the list field look smoother. Those are adjusted only horizontally, similar to the search field.

Thinking about position dependency

Thinking about position dependency

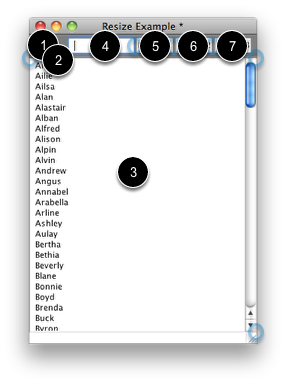

Before we go and create the script, I should think about what objects depend on what other object. For example, the list fields top border position depends on the rectangle graphic behind the search field and buttons. Meanwhile, the buttons position depends on the search field width, one after another. Finally, the two graphics depend on the width of the stack (actually the card, as I explain later).

This means I need to make two mental groups of the objects. First I'll deal with the two graphics and the list field. I need to start on the top left, because that point is not going to move and always be 0,0. Similar to that, the top leftmost object should go first, in this case the rectangle graphic (Nr. 1 above). After I have adjusted the width of that one, I'll position the line graphic (Nr. 2) at the bottom of the rectangle, and make the list field follow next (Nr. 3).

Similar, I'll start with the search fields topleft position (Nr. 4), which remains unchanged. Then I calculate the new width of the field, and move the buttons relative to that (Nr 5 to 7).

About resizeStack

About resizeStack

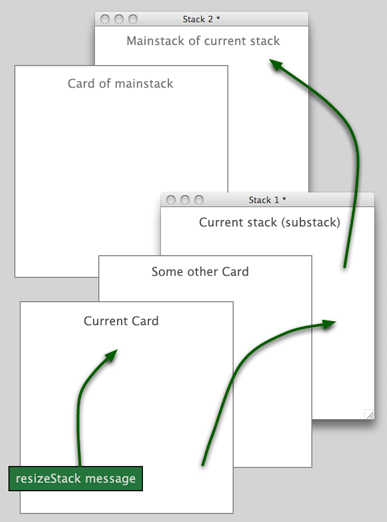

The resizeStack message is sent to the current card, then travels trough the message path. This is important to know, because if you put a resizeStack handler into your stack script, then you will run into troubles, as soon as you have substacks.

Why is that? As seen in the image above, the mainstack will react to unhandled resizestack messages. Because of that, it is good practice to always put resizeStack handlers into the card script. Similar, if you have several cards in your stack, with different layouts, the resizeStack handle might produce a runtime error, because it would try to move objects that are not on the current card.

Handling the graphics and the field

Handling the graphics and the field

The code to resize the graphics and the fields looks like this:

on resizeStack cardWidth, cardHeight

  set the width of graphic "rectangle" to cardWidth

  set the topleft of graphic "rectangle" to 0,0

  set the points of graphic "line" to the bottomleft of graphic "rectangle" & return & the bottomright of graphic "rectangle"

  put 0 into listFieldLeft

  put the bottom of graphic "rectangle" +1 into listFieldTop

  put cardWidth into listFieldright

  put cardHeight -14 into listFieldbottom

  set the rect of field "list" to listFieldLeft,listFieldTop,listFieldRight,listFieldBottom

end resizeStack

As you see, I need to offset the bottom of the field by 14 pixels, because otherwise it'd vanish behind the resize grabber of the stack.

Note that I do not use "lock screen" and "unlock screen" as I would have done in other handlers.  resizeStack behaves special, and handles all resizing and positioning at once.

Handling the field and the buttons

Handling the field and the buttons

This code looks like this:

on resizeStack cardWidth, cardHeight

  put the topleft of field "search" into savedTopLeft

  put the left of field "search" into theLength

  add the width of button "button 1" + 3 to theLength

  add  the width of button "button 2" + 3 to theLength

  add  the width of button "button 3" + 9 to theLength

  set the width of field "search" to cardWidth - theLength

  set the topleft of field "search" to savedTopLeft

  set the left of button "button 1" to the right of field "search" + 3

  set the left of button "button 2" to the right of button "button 1" + 3

  set the left of button "button 3" to the right of button "button 2" + 3

end resizeStack

I could have reduced the code complexity, by starting with the buttons, then going right, instead of going left from the field. However, it's often easier to think about resizing only from one direction, that is why i started out going the other way. So how could the same result be achieved, if we'd started on the right?

on resizeStack cardWidth, cardHeight

  set the right of button "button 3" to cardWidth - 9

  set the right of button "button 2" to the left of button "button 3" - 3

  set the right of button "button 1" to the left of button "button 2" - 3

  put the topleft of field "search" into savedTopLeft

  put the left of button "button 1" - the left of field "search" -3 into theWidth

  set the width of field "search" to theWidth

  set the topleft of field "search" to savedTopLeft

end resizeStack

Much nicer to follow, in my opinion. So don't forget to be flexible, if your first positioning approach is starting to get too complex.

Combined code

To combine both behaviours, all we need to do is to make only one resizeStack handler with both code snippets:

on resizeStack cardWidth, cardHeight

  --graphics and list field

  set the width of graphic "rectangle" to cardWidth

  set the topleft of graphic "rectangle" to 0,0

  set the points of graphic "line" to the bottomleft of graphic "rectangle" & return & the bottomright of graphic "rectangle"

  put 0 into listFieldLeft

  put the bottom of graphic "rectangle" +1 into listFieldTop

  put cardWidth into listFieldright

  put cardHeight -14 into listFieldbottom

  set the rect of field "list" to listFieldLeft,listFieldTop,listFieldRight,listFieldBottom



  --search field and buttons

  set the right of button "button 3" to cardWidth - 9

  set the right of button "button 2" to the left of button "button 3" - 3

  set the right of button "button 1" to the left of button "button 2" - 3

  put the topleft of field "search" into savedTopLeft

  put the left of button "button 1" - the left of field "search" -3 into theWidth

  set the width of field "search" to theWidth

  set the topleft of field "search" to savedTopLeft

end resizeStack

Additional things to think about

There are some additional steps you will want to do, for the stack to always resize properly. For example, if the user is on another card in the stack, and resize the stack there, then your custom resize handler won't run. So you need to make it run whenever the user navigates to your card:

on preOpenCard

  resizeStack the width of this card, the height of this card

end preOpenCard

Another thing to watch out for is, that the code can't set objects to a negative width. So if the user resizes the stack to a very small size, then a script error will occur in this example stack. To prevent that, make sure to set the minimal width and height of your stack to something sensible:

set the minWidth of this stack to 240

set the minheight of this stack to 180

When you're trying out resizing scripts, it can happen that an object is resized or repositioned strangely, for example to a huge negative location, where you can't see it anymore. So if you try to create resizeStack code, make a copy of all objects into some temporary stack. That way, if things go haywire, you can always delete all the objects, copy them back in, and restart from scratch.

Also, for complex stacks with a lot of objects, try to group objects that behave the same, or belong to each other in the resizeStack handler. For example, I could have grouped the three buttons together, and then only reposition that group, instead of each button individually. It'd have reduced 3 objects that I need to think about to just one. Of course that's not really a problem in this example stack, but for larger layouts, grouping stuff together can be a lifesaver.
