How to create a scrolling group using a native scroller and the improved graphics architecture

The 'scrolling' layerMode can be used to good effect to cache scrolling group content. If a group is completely unadorned (no border, no scrollbars), then the engine will take the bounds of the group to be that of its contained objects and clip the rendering of those objects to the rect. In particular, it will be the unclipped content that is cached - thus eliminating redraw overhead for scrolling.

Create your group content

Create your group content

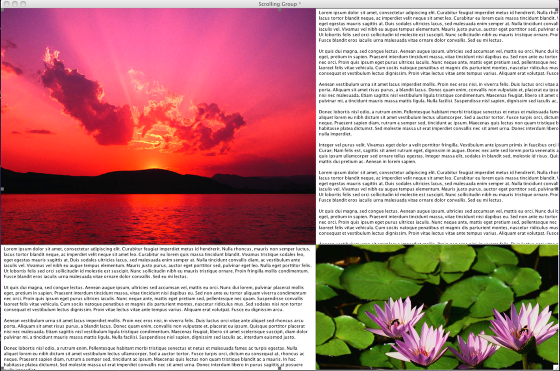

Create a new mainstack and add the content you want your scrolling group to contain. In this example we have used 3 images and 3 text fields.

Group the controls together and call the group 'gallery'.

Resize the group

Resize the group

Set the size of your stack, for this example I have made a stack that is 480 x 640. Resize your group, set the lockLocation of the group to 'true'.

Set the layerMode of the group

The engine determines what to cache based on the per-object layerMode property. This is one of static, dynamic or scrolling.

Scrolling applies only to group and is used where the group contains contents that will be scrolled so is ideal in this example.

set the layerMode of group "gallery" to "scrolling"

Set the stack properties

To use the new 'accelerated rendering' feature we need to set some stack properties which control the accelerated rendering. The compositor properties are not persistent so they must be set in preOpenStack or preOpenCard.

on preOpenStack
	if the platform is "iphone" then
		set the compositorType of this stack to "opengl"
	else
		set the compositorType of this stack to "software"
	end if
	set the compositorTileSize of this stack to 32
	set the compositorCacheLimit of this stack to (16 * 1024 * 1024)
end preOpenStack



Add script to allow scrolling

The group must handle scrolling by detecting touch gestures and setting the hScroll and vScroll properties of the group.

The basic method is

on mouseDown: record the scroll value of the group and postition of the touch

on mouseMove: calculate how far the gesture has moved horizontally and vertically, set the scroll values of the group

The contents of the group should be scrolled along with the gesture.

local sScrolling
local sInitialMouseX, sInitialMouseY
local sInitialHScroll, sInitialVScroll

on mouseDown
	## Allow the group to scroll
	put true into sScrolling

	## Record the initial touch position
	put item 1 of the mouseLoc into sInitialMouseX
	put item 2 of the mouseLoc into sInitialMouseY

	## Record the initial hScroll and vScroll
	put the vScroll of me into sInitialVScroll
	put the hScroll of me into sInitialHScroll
end mouseDown

on mouseMove mouseX, mouseY
	## If the screen is being touched then
	if sScrolling then
		## Calculate how far the touch has moved since it started
		put mouseY - sInitialMouseY into tVChange
		put mouseX- sInitialMouseX into tHChange

		## Reset the hScroll and vScroll to follow the touch
		lock screen
		set the vScroll of me to sInitialVScroll - tVChange
		set the hScroll of me to sInitialHScroll - tHChange
		unlock screen
	end if
end mouseMove

on mouseRelease
	mouseUp
end mouseRelease

on mouseUp
	put false into sScrolling
end mouseUp

Toggle accelerated rendering on/off

To see the difference when accelerated rendering is used add a button to the stack that switches it on and off.

on mouseUp
	## Switch graphics properties on and off
	if the label of me is "Off" then
		set the label of me to "On"
		if the platform is "iphone" then
			set the compositorType of this stack to "opengl"
		else
			set the compositorType of this stack to "software"
		end if
		set the compositorTileSize of this stack to 32
		set the compositorCacheLimit of this stack to (16 * 1024 * 1024)
		set the layerMode of group "gallery" to "scrolling"
	else
		set the label of me to "Off"
		set the compositorType of this stack to "none"
	end if
end mouseUp

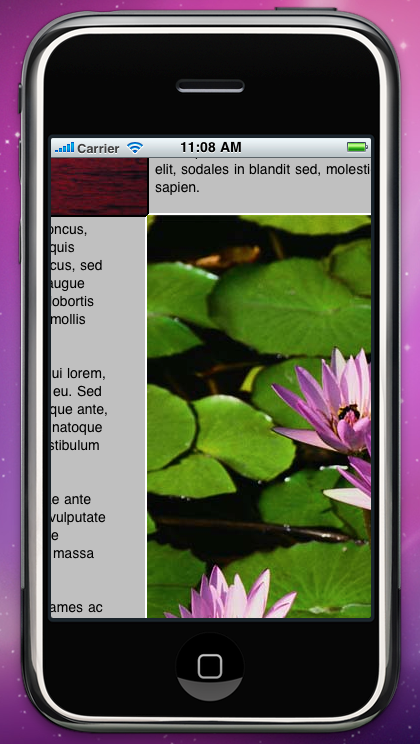

Test scrolling

Test scrolling

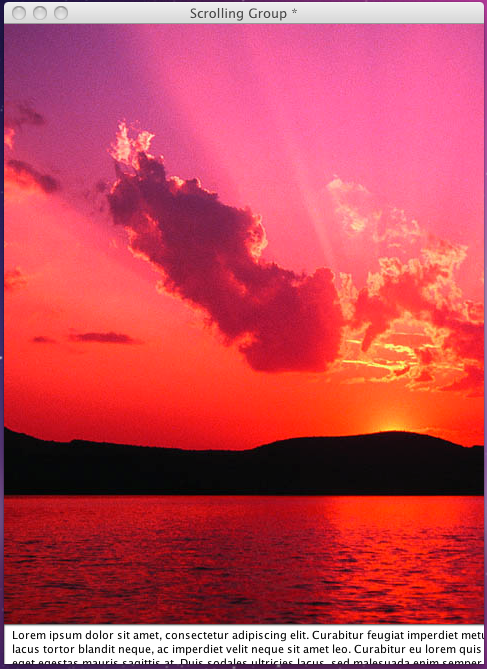

Set up the standalone application settings to build for your desired platform and test the stack.

The Example Stack

You can download the example stack from this url https://tinyurl.com/smf4frv
