Example: Creating a List of People

This lesson provides a low detail, step-by-step example of creating a custom data grid form. You can download the attached sample stack to see the scripts (or download it here).

What You Will Create

What You Will Create

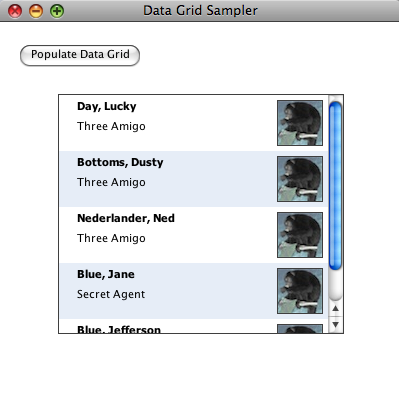

This is the data grid that you will create. Each row displays a name, a title and an image.

Add Data Grid to Card

Add Data Grid to Card

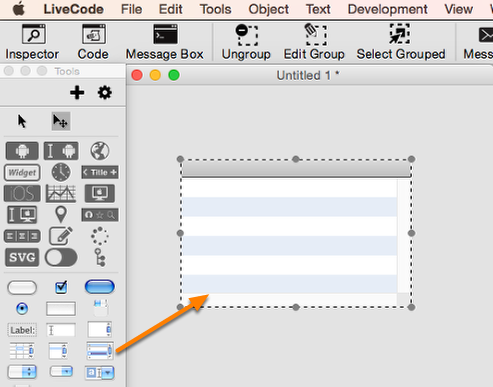

To begin, drag a data grid from the Tools palette onto  your card.

Change Data Grid Style

Change Data Grid Style

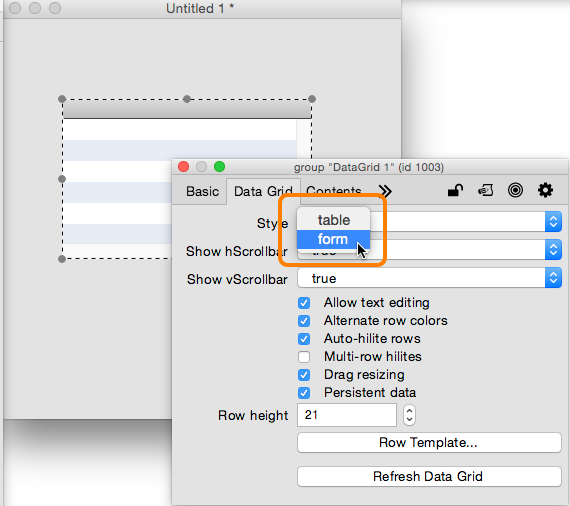

Select the data grid and from the Basic Properties pane of the property inspector change the style of the data grid to Form.

The Data That Is Going to Be Displayed In Each Row

The Data That Is Going to Be Displayed In Each Row

Now you are going to design the row template for the data grid form. The row template dictates how each record in the data grid will be displayed.

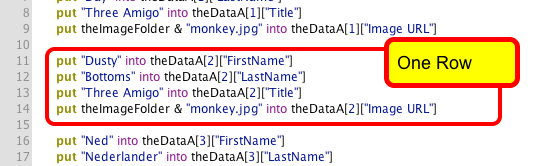

Before you start editing the row template you need to know about the data that will be displayed each row. This screenshot shows an excerpt from the code that populates the data grid using a multi-dimensional array (look in the card script of the example stack). Each row will have access to the data stored in the FirstName, LastName, Title and ImageURL keys of the array.

You are now going to add UI controls to the row template in order to display the data for each of these keys.

Edit the Row Template

Edit the Row Template

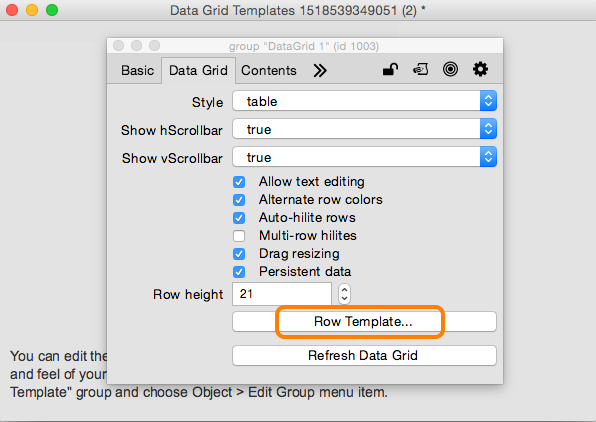

With the data grid selected, click on the Row Template button in the property inspector to open the card containing row template controls.

Edit the Row Template Group

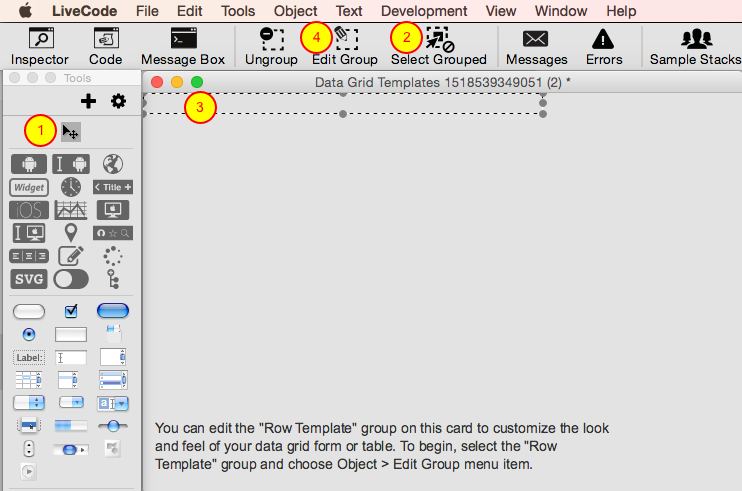

Edit the Row Template Group

In order to customize the look we need to edit the contents of the template group.

1) Make sure the Edit tool is selected.

2) Make sure that Select Grouped IS NOT active.

3) Select the row template group.

4) Click Edit Group (4) in the Revolution toolbar.

Rename Label Field

Rename Label Field

The default template group has a field named "Label". Click on the left side of the gray rectangle to select it.

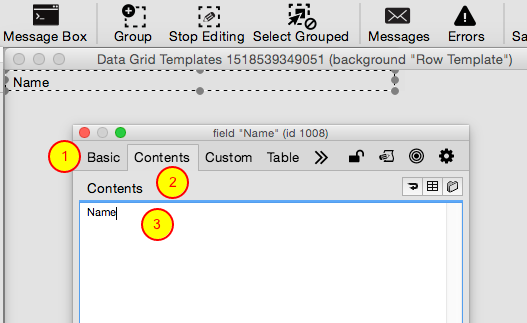

Open the property inspector and from the Contents pane (1) change the name of the field to Name (2) and assign Name as the content (3).

Make Name Field Bold

Make Name Field Bold

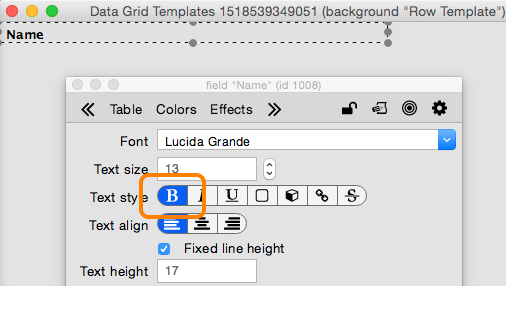

With the Name field still selected change the Style to Bold from the Text Formatting pane of the property inspector.

Add Title Field

Add Title Field

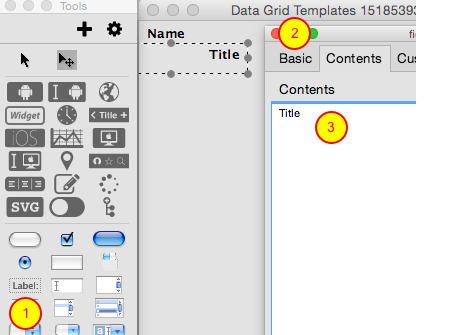

Drag a label field from the Tools palette (1). Name it Title (2) and assign Title to the content (3).

Change Text Alignment

Change Text Alignment

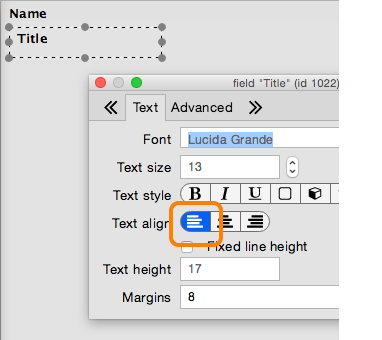

Change the text alignment of the field to the left side using the Text Formatting pane of the property inspector.

Add An Image and Resize The Background Graphic

Add An Image and Resize The Background Graphic

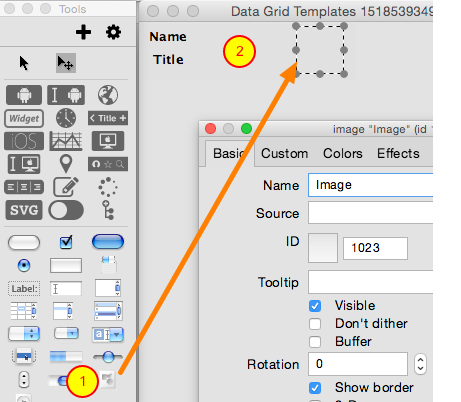

Now drag an image object into the group using the Tools palette (1). With the image selected, set the width and height to 48 pixels using the Size & Position pane in the property inspector.

Resize the "Background" graphic so that it frames the other controls (2). In the example stack the width of the graphic is 214 and the height is 56.

Stop Editing the Row Template Group

Stop Editing the Row Template Group

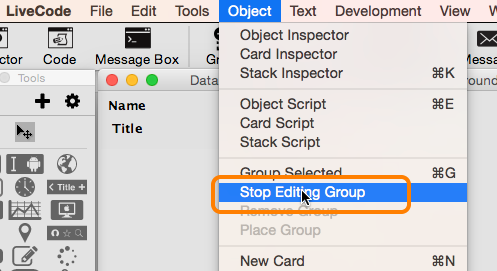

You are now done adding the UI objects to the row template group. From the Object menu, select Stop Editing Group.

Edit the Row Behavior

Edit the Row Behavior

Now that you have designed the controls for each row you need to write the script that will move data into the controls and position them on the screen.

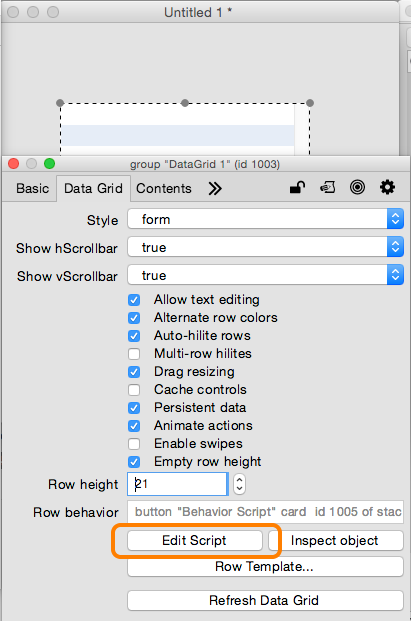

Click on the Row Behavior button in the property inspector to begin editing the row behavior script.

The FillInData Message

The FillInData Message

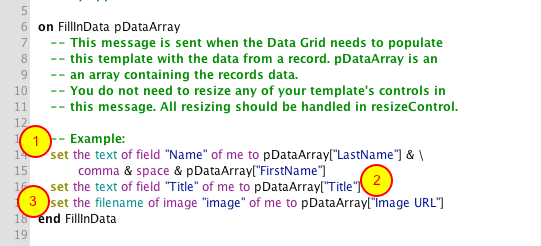

In the script that opens when you click the Row Behavior button you will find a command named FillInData. This is where you move data from the pDataArray parameter into the controls you created.

pDataArray is an array with the keys FirstName, LastName, Name and Title. The code that moves the values from the array into the UI controls is pretty straightforward.

1) Assign the values of the FirstName and LastName keys to the Name field.

2) Assign the value of the Title key to the Title field.

3) Assign the value of the Image URL key to the filename property of the image control.

You don't need to worry about positioning any of your controls in the FillInData command. You just need to write the code that assigns the data to the UI controls.

==========

Copy & Paste

==========

on FillInData pDataArray
	-- This message is sent when the Data Grid needs to populate
	-- this template with the data from a record. pDataArray is an
	-- an array containing the records data.
	-- You do not need to resize any of your template's controls in
	-- this message. All resizing should be handled in resizeControl.

	-- Example:
	set the text of field "Name" of me to pDataArray["LastName"] & \
			 comma & space & pDataArray["FirstName"]
	set the text of field "Title" of me to pDataArray["Title"]
	set the filename of image "image" of me to pDataArray["Image URL"]
end FillInData

The LayoutControl Message

The LayoutControl Message

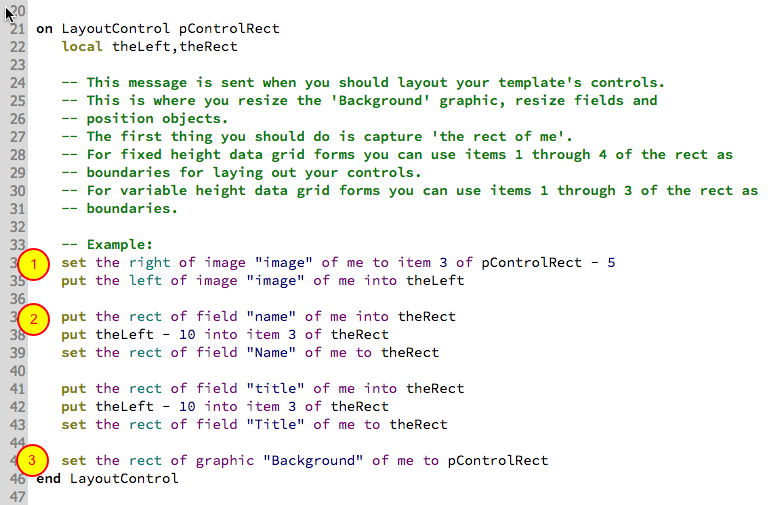

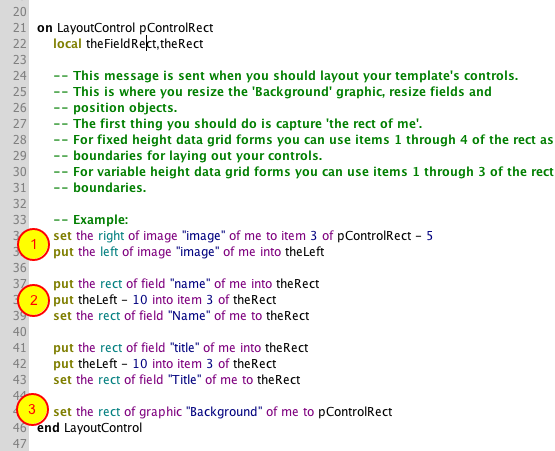

The LayoutControl message is where you position all of your controls. For this template you begin by positioning the image (1). Next you extend the "Name" and "Title" fields to the edge of the image (2). Finally you resize the "Background" graphic to fill the entire row rectangle.

==========

Copy & Paste

==========

on LayoutControl pControlRect
	local theFieldRect,theRect

	-- This message is sent when you should layout your template's controls.
	-- This is where you resize the 'Background' graphic, resize fields and
	-- position objects.
	-- The first thing you should do is capture 'the rect of me'.
	-- For fixed height data grid forms you can use items 1 through 4 of the rect as
	-- boundaries for laying out your controls.
	-- For variable height data grid forms you can use items 1 through 3 of the rect as
	-- boundaries.

	-- Example:
	set the right of image "image" of me to item 3 of pControlRect - 5
	put the left of image "image" of me into theLeft

	put the rect of field "name" of me into theRect
	put theLeft - 10 into item 3 of theRect
	set the rect of field "Name" of me to theRect

	put the rect of field "title" of me into theRect
	put theLeft - 10 into item 3 of theRect
	set the rect of field "Title" of me to theRect

	set the rect of graphic "Background" of me to pControlRect
end LayoutControl

Set the Data of the Control

This is an example of a handler that populates the data grid with data by setting the dgData property. The dgData property accepts a multi-dimensional array. The first dimensions is an integer representing the row. The second dimension are the key/values you want to pass to each row.

You can find this handler in the card script of the example stack.

==========

Copy & Paste

==========

command uiPopulatePeople
	put "images/" into theImageFolder

	put "Lucky" into theDataA[1]["FirstName"]
	put "Day" into theDataA[1]["LastName"]
	put "Three Amigo" into theDataA[1]["Title"]
	put theImageFolder & "monkey.jpg" into theDataA[1]["Image URL"]

	put "Dusty" into theDataA[2]["FirstName"]
	put "Bottoms" into theDataA[2]["LastName"]
	put "Three Amigo" into theDataA[2]["Title"]
	put theImageFolder & "monkey.jpg" into theDataA[2]["Image URL"]

	put "Ned" into theDataA[3]["FirstName"]
	put "Nederlander" into theDataA[3]["LastName"]
	put "Three Amigo" into theDataA[3]["Title"]
	put theImageFolder & "monkey.jpg" into theDataA[3]["Image URL"]

	put "Jane" into theDataA[4]["FirstName"]
	put "Blue" into theDataA[4]["LastName"]
	put "Secret Agent" into theDataA[4]["Title"]
	put theImageFolder & "monkey.jpg" into theDataA[4]["Image URL"]

	put "Jefferson" into theDataA[5]["FirstName"]
	put "Blue" into theDataA[5]["LastName"]
	put "Secret Agent" into theDataA[5]["Title"]
	put theImageFolder & "monkey.jpg" into theDataA[5]["Image URL"]

	lock screen
	set the dgData of group "DataGrid 1" to theDataA

	## Hilite first row
	set the dgHilitedLines of group "DataGrid 1" to 1
	unlock screen
end uiPopulatePeople

The Result

The Result

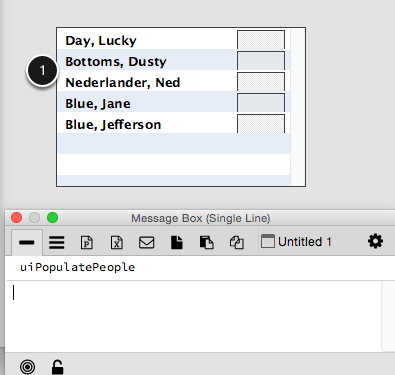

After calling the uiPopulatePeople command the Data Grid should look something like this (1).

Once you have set the dgData property you can refresh the data grid to see any changes you might make to the row template. You can send the ResetList message to the data grid, or press the Refresh Data Grid button on the Basic Properties pane of the property inspector (2) to redraw the data using the updated template.

Troubleshooting: Row Height

Troubleshooting: Row Height

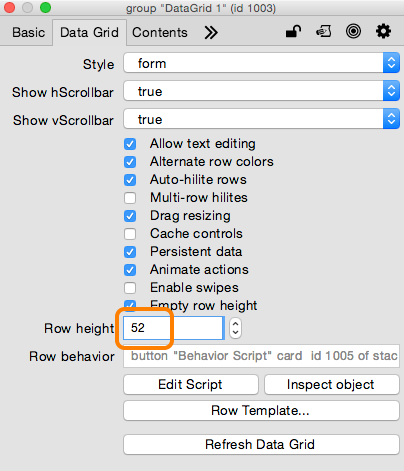

By default a data grid uses a fixed height for each row. If you have not set the row height the first time you populate the data grid with data then the value is automatically filled in based on the height of your row template. If you then change the height of the row template later on you will need to update the row height in the property inspector.
