This lesson will show you how to create a bare bones data grid table. Data grid tables are useful when you need to display rows of data in structured columns.

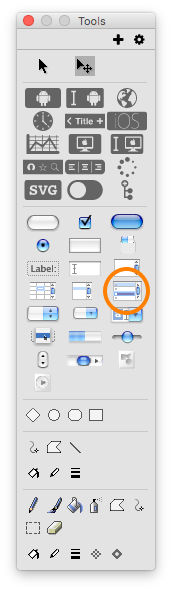

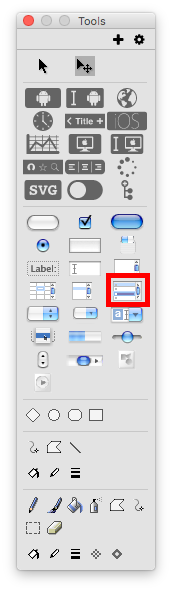

Locate Data Grid on Tools Palette

Locate Data Grid on Tools Palette

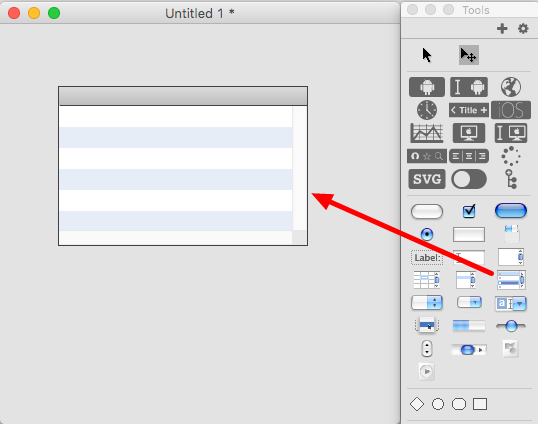

Drag Data Grid Onto Card

Drag Data Grid Onto Card

Populate Data Grid Using Object Inspector

Populate Data Grid Using Object Inspector

Data Grid tables display data in columns that you can customize the look of. You don't have to worry about customization right now though because a Data Grid table can display plain text just fine. Let's test it out.

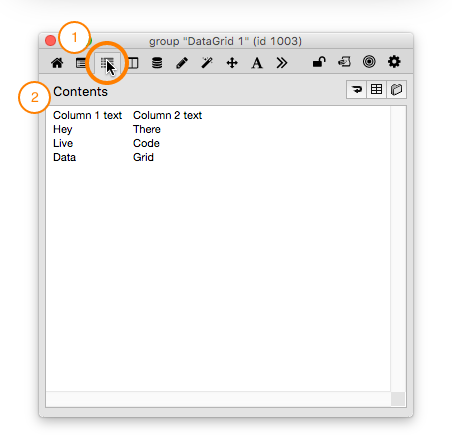

1) Switch to the Contents pane of the Object Inspector.

2) Type or paste some tab delimited text into the field. Click out of the field (in the Name field for example) to save the text you entered.

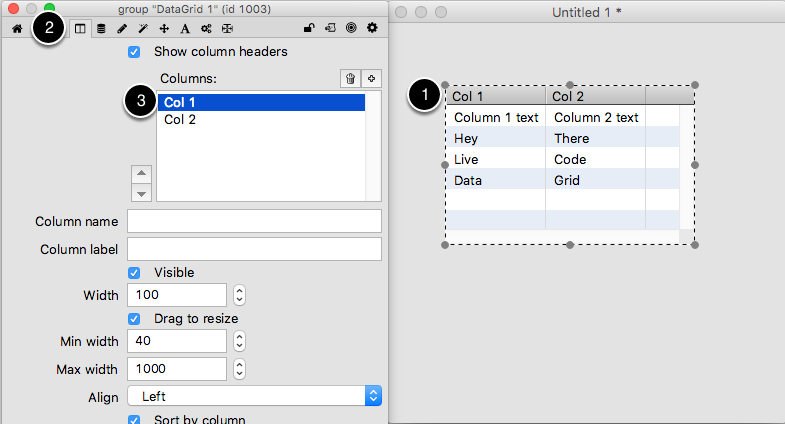

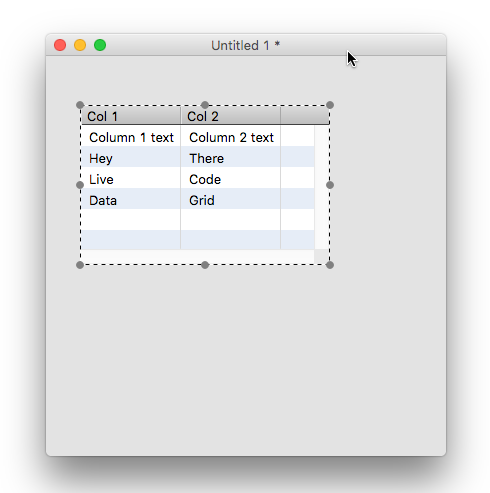

The tab delimited text you entered in the field will appear as columns in the data grid (1). The Object Inspector automatically creates a column in the Data Grid for each column in the text you provide (2).

Customizing Columns

Customizing Columns

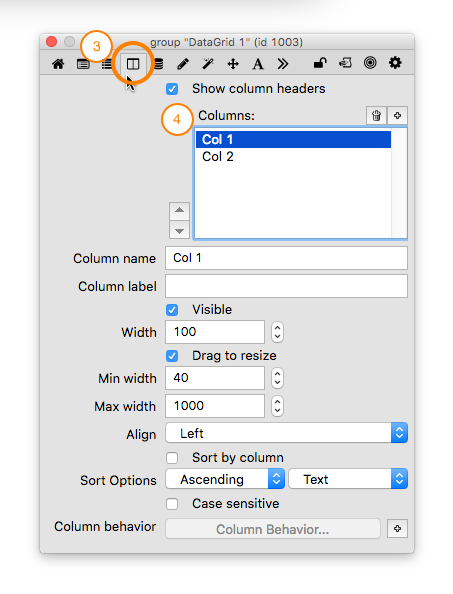

Now that you've populate a Data Grid Table with some data let's look at the columns in the Data Grid.

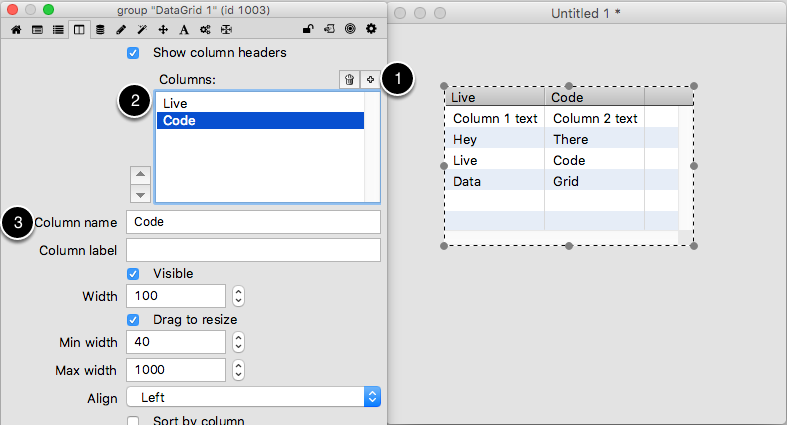

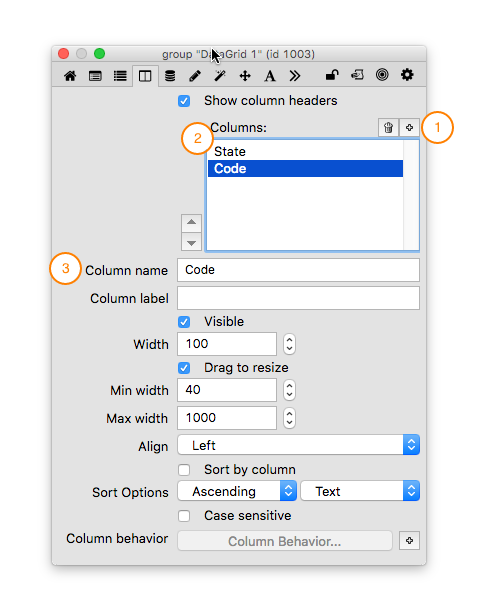

Normally when you work with a Data Grid Table you will create columns in the property inspector in advance using the "+" button (1). Seeing as the columns I need already exist I've gone through and renamed "Col 1" to "state" and "Col 2" to "code" (2).

Note that I have assigned a label for the columns (3). Labels are useful for customizing the column labels in the Data Grid Table.

Populate Data Grid Using dgText Property

Now that we have defined our columns let's look at how to populate a Data Grid Table by setting the dgText property. Here is an example handler with comments that you can place in a button.

Note: Verify that the name of your data grid matches the name used in the code below otherwise an error will occur when you try to run it.

on mouseUp

## Create tab delimited data.

## Note that first line has name of columns.

## Providing names tells Data Grid how to map

## data to appropriate columns.

put "state" & tab & "code" & cr & \

"ALABAMA" & tab & "AL" & cr & \

"ALASKA" & tab & "AK" into theText

## Let Data Grid know that first line has column names

put true into firstLineContainsColumnNames

set the dgText [ firstLineContainsColumnNames ] of group "DataGrid" to theText

end mouseUp

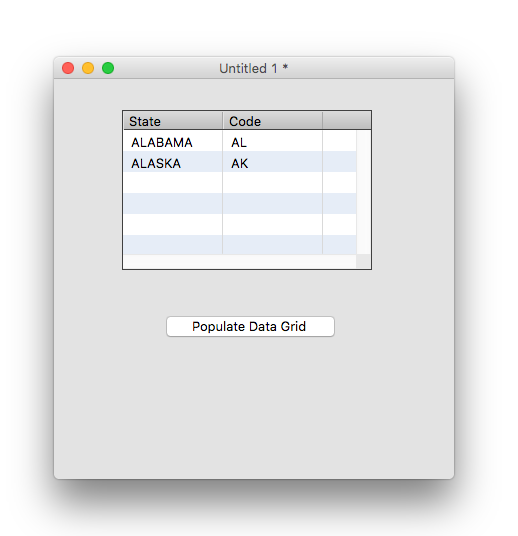

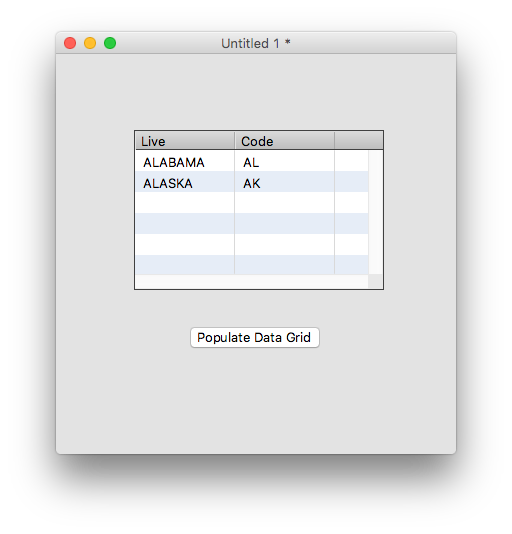

Executing the above code would give you the following result in the Data Grid table.

Populating the Data Grid Using dgData Property

Here is an example of populating the Data Grid Table by setting the dgData property to an array. The end result is the same as the previous step.

Note: Verify that the name of your data grid matches the name used in the code below otherwise an error will occur when you try to run it.

on mouseUp

## Create a nested array.

## Array key names in the 2nd dimension

## dictate values for individual columns

put "ALABAMA" into theDataA[ 1 ][ "state" ]

put "AL" into theDataA[ 1 ][ "code" ]

put "ALASKA" into theDataA[ 2 ][ "state" ]

put "AK" into theDataA[ 2 ][ "code" ]

set the dgData of group "DataGrid" to theDataA

end mouseUp
