Simple Login System

In this lesson we will teach you how to create a simple login system that can be used on your stack.  Although this is a simple method of implementing such a feature, it can be built upon to create more advanced systems.

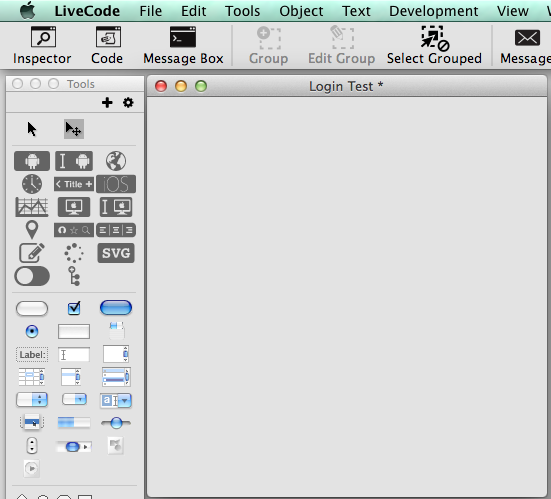

Create a new stack

Create a new stack

1) Create a new stack

2) Name the stack "Login Test"

3) Name this first card "Login"

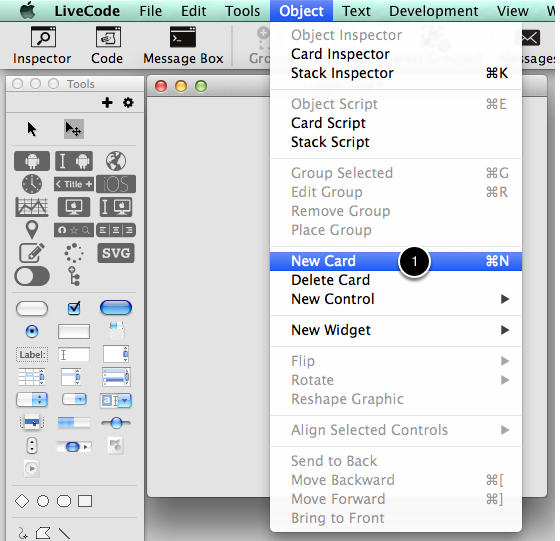

Create a new card

Create a new card

1) Create a new card and call it "accessed"

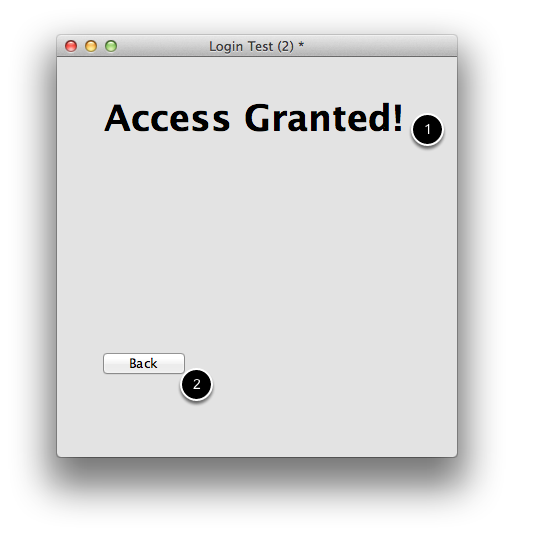

Setup accessed card

Setup accessed card

1) Add label field with "Access Granted"

2) Add button with following script

on mouseUp
   go to the first card
end mouseUp

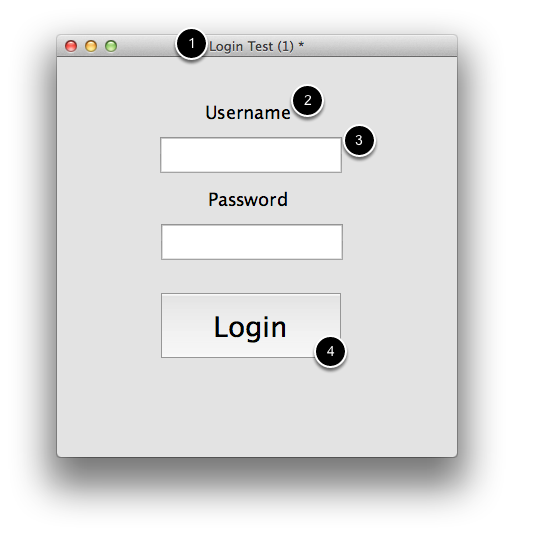

Create Login card elements

Create Login card elements

1) Navigate to log in card

2) Create two input fields. One called username and one called password

3) Create two label fields. One with its contents set to "Username" and the other "Password"

4) Create a button and set its label to "Login"



Edit the script of the card

Edit the script of the card

Place the following in your card script

local sUsername, sPassword
on openCard
   put "johnsmith" into sUsername
   put "pa55word" into sPassword
end openCard

on loginCheck
   if field "username" is sUsername and field "password" is sPassword then
      go to card "accessed"
   else
      answer "Details Incorrect. Please try again!"
   end if
end loginCheck

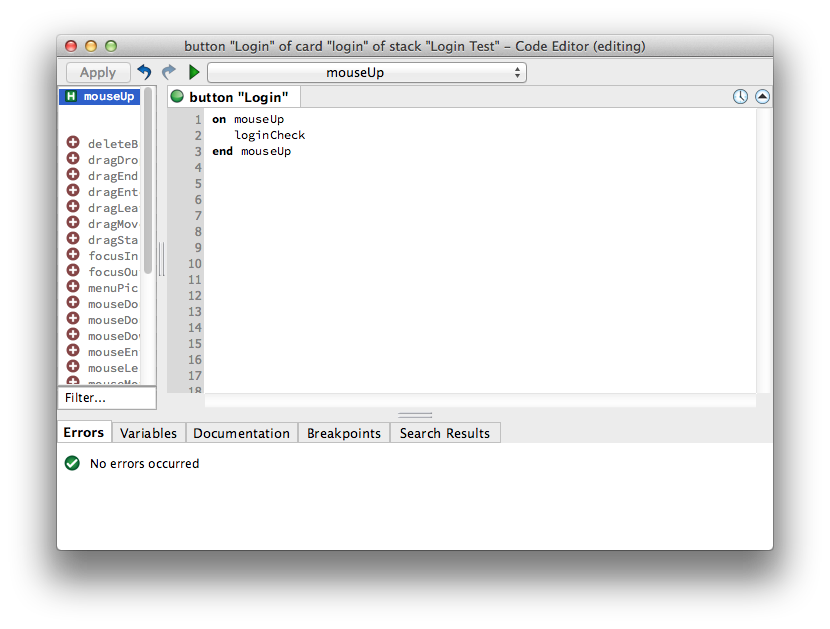

Edit the script of the "Login Button"

Edit the script of the "Login Button"

Call the "loginCheck" handler from the mouseUp of this button

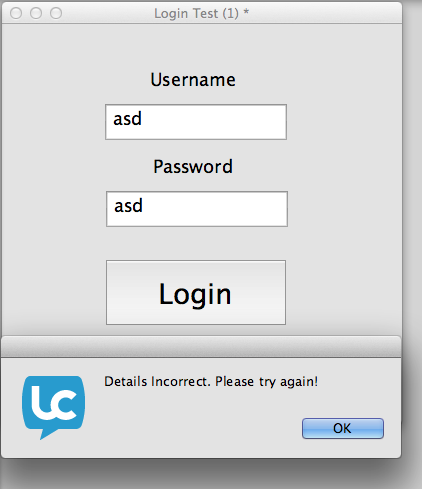

Test the Script

Test the Script

The above script puts a defined username and password into a variable and then the loginCheck handler checks if the contents of the username and password fields matches these values.

If a match is successful then you progress to the next card. However, if details are in-correct then an answer dialog is shown.

10 Comments

Ilona

super, worked right away. The user data is now hardcoded in the source code. But how can I transfer the user data from the database to the fields?

Elanor Buchanan

Hi Ilona

Do you want to check the details entered by the user against a database? If so you could construct a database query using the entered username and password and use that to check if the details are valid.

You might find these lessons useful

http://lessons.livecode.com/m/4071/c/16767

I hope that helps.

Elanor

Pelumi

Thanks for this. Please how do you make the text in the password field hidden? Thank You

Elanor Buchanan

Hi Pelumi

If you will be deploying a mobile app you can create a native text input control and use

mobileControlSet ,"contentType","password"

to hide the text in the password field.

On desktop you will have to handle this yourself by replacing the characters with a symbol as they are entered. You can find an example of how to do this here

http://livecodeshare.runrev.com/stack/241/Password-Field

I hope that helps.

Elanor

Pelumi

Yes it did. Thanks Elanor!

Daniel Olukayode

How do I create a simple create account system?

Elanor Buchanan

Hi Daniel

This is quite a large question. Some things to think about are

- How will the user sign up and how will you validate new accounts
- How will you store the user account data(what type of database)
- How will your app communicate with the database

You might find out OAuth2 library useful

http://lessons.livecode.com/m/2592/l/671591-how-do-i-use-the-oauth2-library

And our lesson on accessing web services from LiveCode.

http://lessons.livecode.com/m/4070/l/40932-accessing-web-services-using-livecode

I hope that is some help.

Kind regards

Elanor

Daniel Olukayode

Thank you! That really helped. Another question, how do I hide a card? I've tried this code

on mouseUp
hide card "Understand"
show card "Adress"
end mouseUp

but nothing works.

Matthias Rebbe

Daniel,
you can't hide card, just stacks.
So if both cards are on the same stack, then just use

go to card "Adress"

This shows card "Adress" instead of card "Understand".

Matthias Rebbe

Daniel,
are you aware that today starts the "Lockdown Learning" course.
https://livecode.com/lockdown-learning/

Regards,
Matthias
