How do I use Native Text Controls on Mobile

This lesson describes how to interact with the native UITextField class from within your LiveCode application.

Screen captures and sample code are provided.

You can download the sample stack from this url: https://tinyurl.com/y8lyj2x4

Introduction

This lesson shows you how to interact with a native text control within your LiveCode application and demonstrates some of the features that are available. You should review the user guide in order to get updates on the features covered here.

Creating a Test Interface

Creating a Test Interface

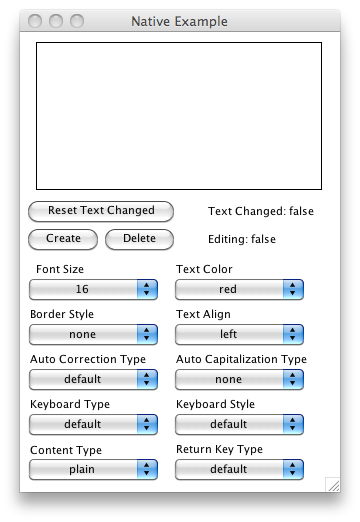

The interface shown in this step provides a number of option menus that allow you to set properties that control how you interact with the native text field. You can control font size, border style, auto correction type, keyboard type, content type, text color, text align, auto capitalization, keyboard style, return key type and receive the editing, text changed and return key messages. This list is only a subset of the native text field control features that are available in LiveCode.

The option menus do not contain any LiveCode script and are processed purely on the content of their names and labels. A generic message handler probes the content of these values for each option menu and applies the value using the command mobileControlSet.

Setting up the Button Code

The stack in this lesson has three buttons: The Reset Text Changed button, the Create button and the Delete button. Each of these buttons executes a small script. These scripts are listed in this step.

The Reset Text Changed button changes label "Text Changed: true" to "Text Changed: false"

on mouseUp
   put "Text Changed: false" into field "textChanged"
end mouseUp

The Create button creates an instance of a text field.

on mouseUp
	inputCreate
end mouseUp

The Delete button deletes an instance of a text field.

on mouseUp
	inputDelete
end mouseUp

Setting up the Stack Code

The card stack contains a number of message handlers that are responsible for a number of control aspects within the application. The comments in the following message event handler scripts provide details of what each script does.



on closeCard
   # Handle the close card event
   inputDelete
end closeCard

on inputCreate
   # Handle the input creation event
   if the environment is "mobile" then
      if "testinput" is among the lines of mobileControls() then
         # ensure that only one native text input is open
         inputDelete
      end if
      mobileControlCreate "input", "testinput"
      # set the native text input field to the size and position of the graphic input rectangle
      mobileControlSet "testinput", "rect", the rect of graphic "InputRect"
      # make the native text input field visible
      mobileControlSet "testinput", "visible", true
      # focus on the native text input field
      mobileControlDo "testinput", "focus", true
      # make sure the selected option menu options are applied to the native text input
      updateFieldProps
   end if
end inputCreate

on inputDelete
   if the environment is "mobile" then
      # delete the native text input
      mobileControlDelete "testinput"
   end if
end inputDelete

on inputFocus
   # set the focus to the native text input
   mobileControlDo "testinput", "focus"
end inputFocus

on inputBeginEditing
   # handle the inputBeingEdited message
   # this updates a label field on the interface
   put "Editing: true" into field "editing"
end inputBeginEditing

on inputEndEditing
   # handle the inputEndEdited message
   # this updates a label field on the interface
   put "Editing: false" into field "editing"
end inputEndEditing

on inputTextChanged
   # handle the inputTextChanged message
   # this updates a label field on the interface
   put "Text Changed: true" into field "textChanged"
end inputTextChanged

on inputReturnKey
   # handle the inputReturnKey message
   # this raises a dialog box, indicating that the return key was pressed
   # and focus was removed from the text field
   answer "The return key was pressed" with "Okay"
end inputReturnKey

on mouseUp
   # handle any mouseUp here that is not handled explicitly by a control
   if word 1 of the name of the target is "button" then
      if the platform is "android" then
         // Show the options
         // On other platforms the options are shown automatically
         local tTarget, tOptions

         put the long name of the target into tTarget
         put the cOptions of tTarget into tOptions

         mobilePick tOptions
         put the result into tResult

         if tResult is not "cancel" then
            set the label of tTarget to line tResult of tOptions
         end if
      end if

      updateFieldProps

   end if
end mouseUp

Updating the Properties

As discussed earlier in this lesson, the option menu items do not have LiveCode associated with them. Rather, they are processed using a generic message handler that uses the name and the label of the option menus to set up the respective control that has been changed. updateFieldProps is stored on the stack script and implements this generic process.

on updateFieldProps
	local tX

	# ensure that we are handling messages from our native text input
	if "testinput" is not among the lines of mobileControls() then
		exit updateFieldProps
	end if

	# loop through each control on the card
	repeat with tX = 1 to the number of controls
		# if the control name does not start with "property" then go to the next item
		if word 1 of the short name of control tX is not "property" then
			next repeat
		end if
		# set the native control property using the value of the current card control
		mobileControlSet "testinput", word 2 of the short name of control tX, the label of control tX
	end repeat

end updateFieldProps

Note: Using a generic process to apply any option menu selection allows you as a developer to add or remove option menus, knowing that any further LiveCode changes are minimal or not needed at all.

Editing Example 1

Editing Example 1

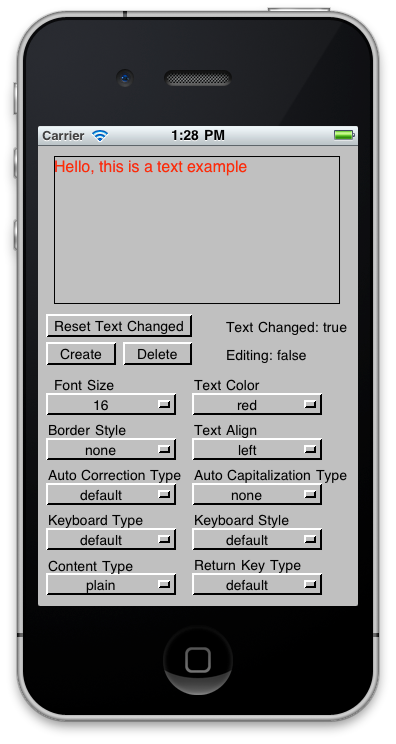

Once you raise your application on the iOS device of choice, you should be presented with the following or similar display. You have to select the button Create before you can start entering text. Once text has been entered (see next example), you should see how the label content of Text Changed and Editing changes. You can reset the Text Changed label by selecting the Reset Text Changed button. Selecting the option menus and altering their content should have an immediate impact on the content that is displayed in the text field.

Editing Example 2

Editing Example 2

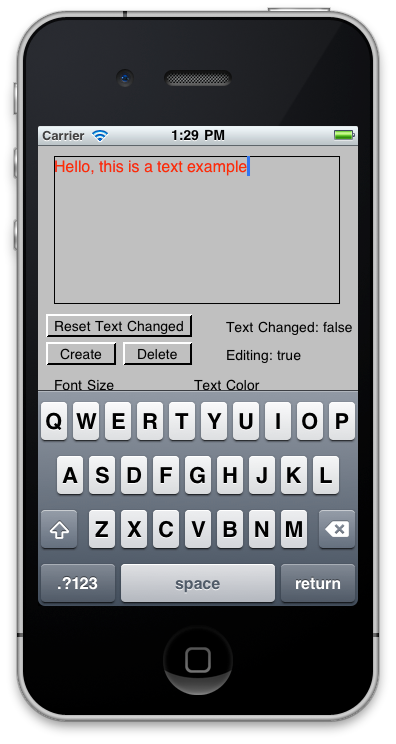

You can enter text by selecting the text input area. This raises the keyboard you specified under the Keyboard Style option menu. Type in the text as required and complete editing with the return key.

Using the Native Text Control

Once the native text control is created it has all the behavior of a iOS field.

You can touch and hold on the field to show a magnified view or touch and release to show editing options.
