How do I become an Android developer on Linux?

The most recent version of the Android SDK tools do not work with LiveCode. If you are using LiveCode 8.1.5 or later please install Android Studio as described in this lesson.

This lesson describes the basic steps you need to follow in order to start up as an Android developer using a PC with the Linux operating system. System configuration information and screen captures are provided.

Introduction

Android is another mobile device family supported by LiveCode. The steps discussed in this lesson outline a process that allows you to set yourself up as a LiveCode developer for the Android platform on Linux and successfully build and deploy test applications. The steps are set out in chronological order, first determining the software requirements and then setting up your system.

Note: The screen captures are up to date at the time of writing this lesson.

Software Requirements

You will need a PC that has the following software installed:

• 32-bit installation, or a 64-bit linux distribution that has a 32-bit compatibility layer

• 2.4.x or later kernel

• glibc 2.3.2 or later X11R5 capable Xserver running locally on a 24-bit display

• compositing window manager (optional - required for alpha-blended window shapes)

• gtk/gdk/glib (optional - required for native theme support)

• pango/xft (optional - required for pdf printing, anti-aliased text and unicode font support)

• lcms (optional - required for color profile support in JPEGs and PNGs)

• gksu (optional - required for elevate process support)

• mplayer (optional - required for video playback)

• esd (optional - required for audio playback)

Note: It is assumed that you are familiar with the installation process of a Linux operating system and LiveCode. Please make sure these are installed before you commence with the remaining steps of this lesson.

The following steps run you through the software installation process that you would typically follow on a PC.

Downloading and Install Java 8 SDK (JDK)

Downloading and Install Java SDK (JDK)

The easiest way to install the Java 8 SDK is through the terminal-

Open a new terminal window and type the following command-

sudo apt-get install openjdk-8-jdk

Now press return.

During the installation it may ask you for your password. This is perfectly normal and part of the installation process.



Downloading the Android SDK

Downloading the Android SDK

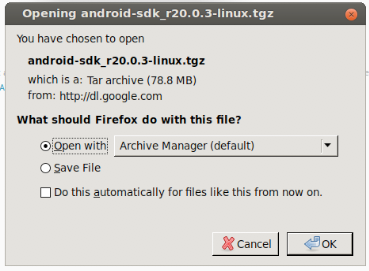

If you do not have the Android SDK installed, then you can download it from:https://developer.android.com/studio/index.html

Navigate to the SDK Tools only download link that is specific to your hardware platform. You will find this at the bottom of the page. Save the file to your file system.

The current version of the SDK Tools is not compatible with LiveCode. Please download version 24.4.1.

Installing the Android SDK

Installing the Android SDK

Extract the contents of the downloaded Android SDK to a directory of your choosing. In this lesson I have chosen the 'Documents' directory of my Linux Distribution.

Run the Android SDK Manager

Run the Android SDK Manager

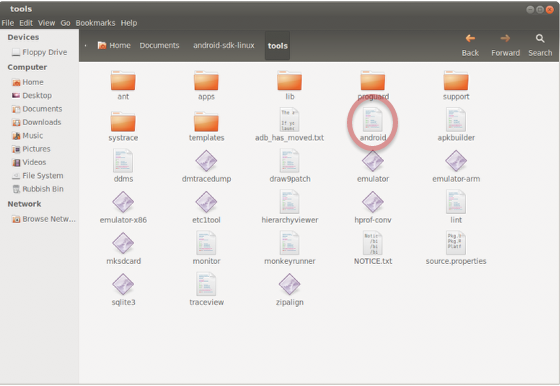

Navigate to your Android SDK Directory and then to the 'Tools Directory' . Run the android script circled above

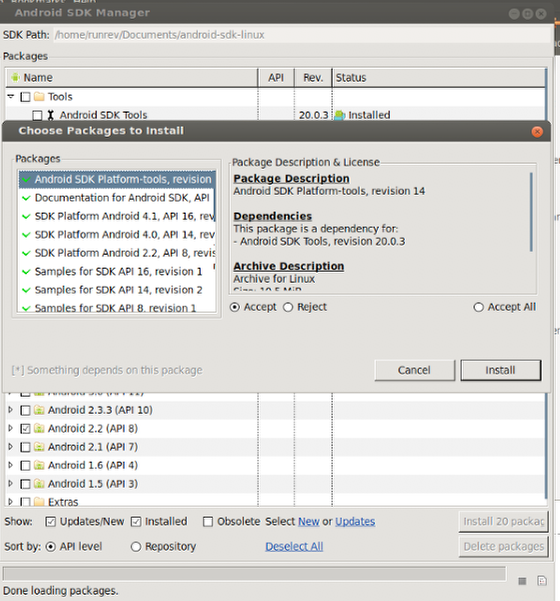

Installing the Android SDK Packages

Installing the Android SDK Packages

This launches Android SDK and AVD Manager

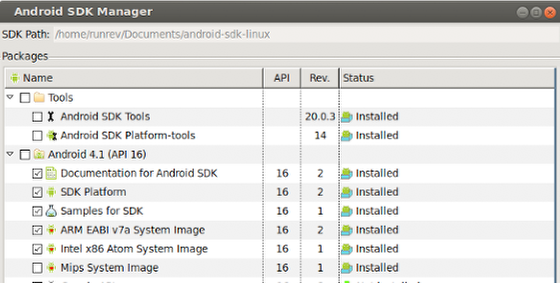

The Android Package Installer lets you select the packages you would like to install in your Android development environment. In the screenshot above I have selected the Android 4.1 ,4.0 and 2.2 packages.

Note: Very old versions of Android are not supported and the very latest versions of Android may not be supported until LiveCode has been updated.

Ensure that you install the SDK Platform Android 2.2, API 8 with revision 2 (or later revision) package.

Note: There is a known "black screen" issue when deploying certain stacks to a simulator running Android 2.2, API 8 with revision 2 . If you experience this issue please create and use an newer Android revision AVD (e.g. 4.1)





Verifying the Android SDK and AVD Manager Package Installation

Verifying the Android SDK and AVD Manager Package Installation

After the Android SDK and AVD Manager has completed installing the selected packages, you should find that the status of packages has changed from 'Not Installed' to 'Installed'

Configuring a Virtual Device

Configuring a Virtual Device

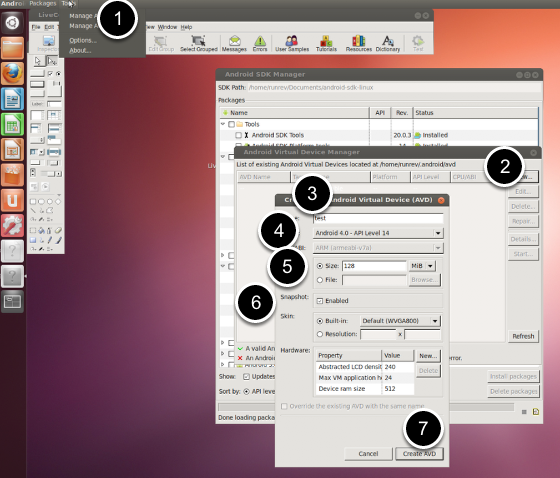

Once you have installed the required packages, you can use the Android SDK and AVD Manager to set up a virtual device that can be used in your development environment. This allows you to test your applications without requiring a physical Android device. You can set up a virtual device as follows:

1. Select Manage AVDs from the Androids SDK Manages Tools window

2. Choose "New" from the  AVD Device manager window

3. Choose the Name for your virtual device.

4. Set the Target an installed Android API other than 8.

5. Fill in the SD Card Size.

6. Optionally enable Snapshot. This speeds up the launch of the emulator.

7. Select Create AVD.

Starting the Virtual Device Simulator

Starting the Virtual Device Simulator

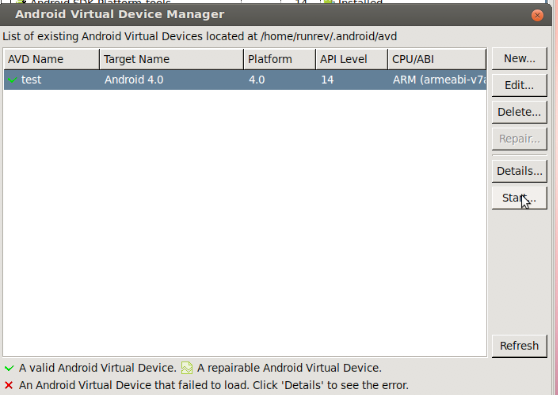

You can launch the emulator by highlighting the virtual device you created and selecting Start... .

Configuring a Physical Device

In addition to setting up virtual devices, it is possible to set up physical devices. These devices can be accessed after they have been appropriately configured for debugging.

Install the appropriate device drivers for the devices you would like to use. Details of how to do this can be found at the Android Developer Website.

The relevant device must be set to debug mode, once the necessary drivers are installed:

1. Go to the home screen, and select MENU.

2. Select Applications -> Development and enable USB debugging.

3. Connect the device via USB to your development machine.

4. The device should now be available and accessible from the Development -> Test Target menu in the LiveCode IDE.

Configuring LiveCode for Android Support

Configuring LiveCode for Android Support

By now, you should have successfully installed the required software in you development environment. The next step is to launch LiveCode and configure it to interface with the Android SDK.

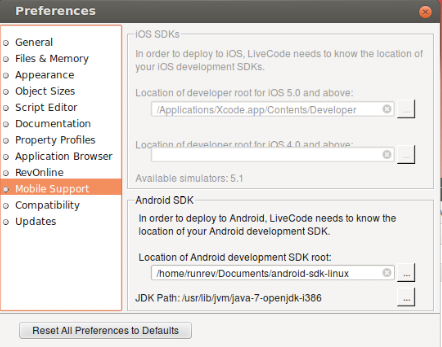

Launch the LiveCode IDE and select Edit -> Preferences to launch the Preferences menu. Then select Mobile Support and you are presented with the dialog shown in this step.

This dialog allows you to configure the path to the Android SDK root, which you should already have installed. Select ... under Android SDK and choose the folder containing the Android SDK root.

Validation checks are made once you specify the location of the Android SDK root. This ensures that you have selected a valid location and have the required Android components installed.

You will aslo have to set the path to the JDK installation from earlier. In the case of my Linux installation the path is /usr/lib/jvm/java-7-openjdk-i386

.

The Standalone Application Settings... Window

The Standalone Application Settings... Window

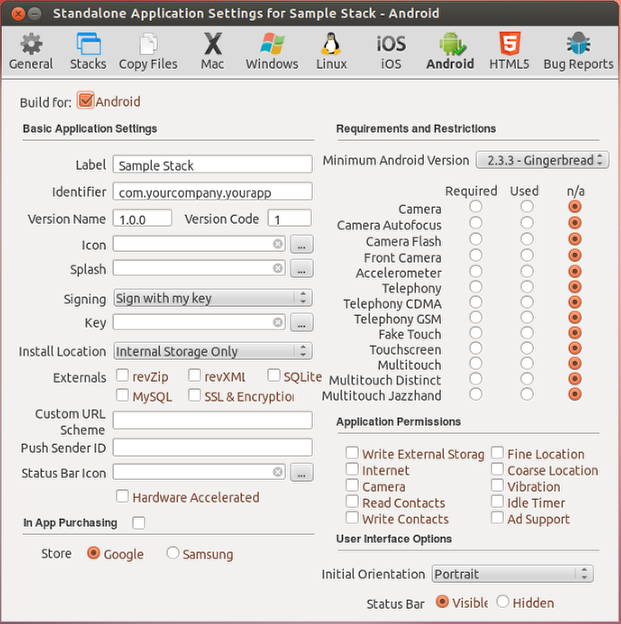

Select File -> Standalone Application Settings... from the LiveCode IDE. Then choose Android from the list of deployment options. This raises the Standalone Application Settings dialog for Android specific builds.

You can make a stack build for Android by selecting the Build for Android tick box and configure any other options you wish to include.

You can select the name of your application using the General option at the top of the pane and add files to your build by using the Copy Files option at the top of the pane.

Note: Making a stack build for Android disables building standalone mainstacks for any other non-mobile platforms. If you wish to share code and resources among platforms, factor your application into multiple stacks, using a different mainstack for mobile and desktop targets.

Note: Inclusions, Copy Referenced Files, Bug Reports and Stacks features are not available when building for Android. Use the Copy Files feature if you wish to include multiple stack files in your application.

Running Under Android

Running Under Android

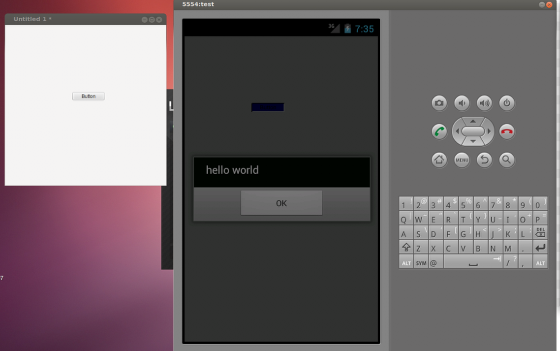

You should now have set up your development environment for Android and are ready to test a LiveCode application on an Android device.

Ensure the emulator is running or an adequately configured physical device is connected before trying to test your code. Then select a device from the LiveCode IDE from Development -> Test Target. Your Test icon on the main pane of the LiveCode IDE should now be active and allow you to deploy your LiveCode application.

NB When deploying to a device, you may receive a "INSTALL_PARSE_FAILED_INCONSISTENT_CERTIFICATES" message. All this means is that there is currently an application installed on your device that has the same identifier as the app your are trying to deploy. This can happen if you are working on a specific app across multiple development machines.

To resolve this issue you can do one of the following-

-remove the existing application from the device you are deploying too

-change the app identifier in the standalone applications settings

Further Reading

Depending on how experienced you are with LiveCode, you may want to review more of the numerous lessons and tutorials we have on developing for Android, iOS and broader lessons that explore the general concepts behind LiveCode.  The release notes accompanying LiveCode releases with Android platform support provide up to date development information and give you an overview of the features that you can access via LiveCode.
